Output
up to 850 lm
Wattage
6W/8W/10W
Family
PT-DLR-B-2
Product details
Retrofit Downlights · Residential catalog · SKU PT-DLR-B-4I-10-5C3P-2
Overview
4" Baffle Retrofit Recessed Downlight with CCT and Wattage Selector Why stock three different color temperatures when you can have 15-in-1?
Series reference
Family
PT-DLR-B-2
Document
4" Baffle Retrofit Recessed Downlight with CCT and Wattage Selector
Why stock three different color temperatures when you can have 15-in-1? Portor's
Catalog
Residential
Technical breakdown
Key technical specifications for this fixture, sourced from the manufacturer document.
Catalog
Residential
Family
PT-DLR-B-2
Fixture type
Retrofit Downlights
Wattage
6W/8W/10W
Output
up to 850 lm
Color temperature
27K / 30K / 35K / 40K / 50K
Voltage
EM Battery Pack
Dimming
Triac dimmable
CRI
90
Operating temp
-14 deg F ~ 122 deg F
Power factor
>0.9
Warranty
5 year limited (Standard)
Frequency
60 Hz
IP rating
IP40
Related inventory
PT-DLJ-B-4I-10W-5CCT
Built for existing recessed cans and quick refresh projects. Selectable 10W with up to 837 lm and 2700K / 3000K / 3500K / 4000K / 5000K options.
Wattage
10WW
Availability
In stock
Unit price
$13.79

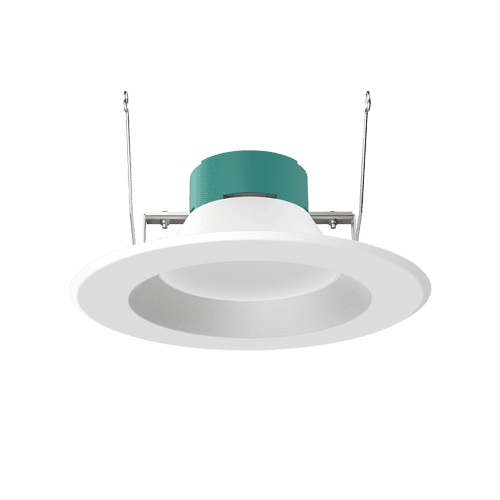

PT-DLR-S-4I-10-5C3P-2
Built for existing recessed cans and quick refresh projects. Selectable 6W / 8W / 10W with up to 850 lm and 2700K / 3000K / 3500K / 4000K / 5000K options.
Wattage
6W/8W/10WW
Availability
In stock
Unit price
$9.23
PT-DLR-B-6I-14-5C3P-2
Built for existing recessed cans and quick refresh projects. Selectable 7W / 10W / 14W with up to 1150 lm and 2700K / 3000K / 3500K / 4000K / 5000K options.
Wattage
7W/10W/14WW
Availability
In stock
Unit price
$11.25
PT-DLR-S-6I-14-5C3P-2
Built for existing recessed cans and quick refresh projects. Selectable 7W / 10W / 14W with up to 1150 lm and 2700K / 3000K / 3500K / 4000K / 5000K options.
Wattage
7W/10W/14WW
Availability
In stock
Unit price
$11.25
