True Spark Lighting Supply
Wall PacksOutdoorPT-WPS
In stock

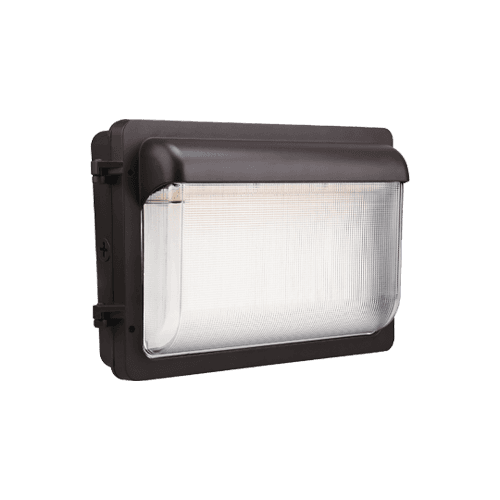

Slim Wall Pack with CCT and Wattage Selector

Output

8,262 lm

Wattage

40/50/60W

Family

PT-WPS

Product details

Slim Wall Pack with CCT and Wattage Selector

Wall Packs · Outdoor catalog · SKU PT-WPS-60-3CP

Overview

30K / 40K / 50K

  • The die-cast aluminum is a durable, powder-coated housing sealed by a silicone ring which enables the luminaire to achieve dust and weather resistance.
  • Luminaire is built with the highest quality 0-10V dimmable LED driver that operates with Universal Voltage (120V-277V) and is completed with 4KV surge protection.
  • Borosilicate glass lens designed to reduce glare and improve over-all light distribution through precision formed LED optics.
  • Options available for occupancy sensors with daylight harvesting fuction.
  • Quick setup with just a screwdriver and drill.

Series reference

Family

PT-WPS

Document

PT -WPS Series

Semi Cut-Off Slim Wallpack with CCT and Wattage Selector

Catalog

Outdoor

Specifications shown are based on the series reference. Confirm exact dimensions and ordering options in the manufacturer PDF before purchasing.

Technical breakdown

Technical specifications

Key technical specifications for this fixture, sourced from the manufacturer document.

PT-WPS / 14 fields

Catalog

Outdoor

Family

PT-WPS

Fixture type

Wall Packs

Wattage

40/50/60W

Output

8,262 lm

Color temperature

3000K / 4000K / 5000K

Voltage

120V - 277V

Dimming

0-10V dimming

CRI

80

Operating temp

-40 deg F ~ 45 deg F

Current

0.51A

Power factor

>0.9

Warranty

5 year limited (Standard)

Lifespan

L70 Rated for 100,000 hours
