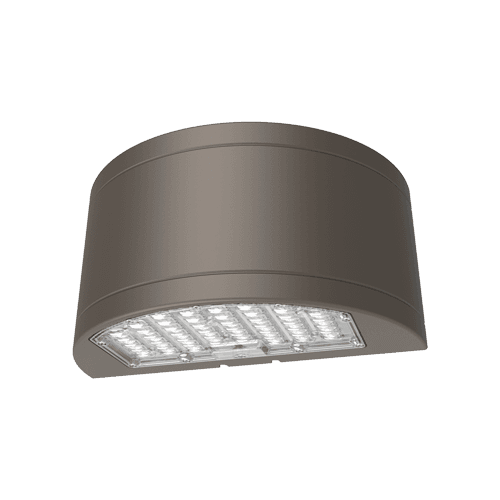

Round Wall Pack with CCT and Wattage Selector

Output

8,640 lm

Wattage

48/64/80W

Family

PT-WPR

Product details

Round Wall Pack with CCT and Wattage Selector

Wall Packs · Outdoor catalog · SKU PT-WPR-HW-3CP

Overview

Round Wall Pack with CCT and Wattage Selector is ideal for wet locations such as processing workshops, storage warehouses, steel mills, toll booths, waiting rooms, and railway station platforms.

  • Made from die-cast aluminum, offering excellent heat dissipation and long-lasting quality.
  • Luminaire is built with the highest quality driver that is universal voltage (120-277V), uses highly-efficient LED packages to ensure cool temperatures for long lasting life span.
  • PC lens designed to reduce glare and improve over-all light distribution through precision formed LED optics.
  • Wall Mount __ Blank Add-0n3

Series reference

Family

PT-WPR

Document

PT -WPR Series

Round Wall Pack with CCT and Wattage Selector

Catalog

Outdoor

Specifications shown are based on the series reference. Confirm exact dimensions and ordering options in the manufacturer PDF before purchasing.

Technical breakdown

Technical specifications

Key technical specifications for this fixture, sourced from the manufacturer document.

PT-WPR / 14 fields

Catalog

Outdoor

Family

PT-WPR

Fixture type

Wall Packs

Wattage

48/64/80W

Output

8,640 lm

Color temperature

3000K / 4000K / 5000K

Voltage

120V-277V

Dimming

0-10V dimming

CRI

80+

Operating temp

-40 deg F ~ 104 deg F

Power factor

>0.9

Warranty

5 year limited (Standard)

Lifespan

L70 > 50,000 hours

Frequency

50/60 Hz
