Commercial LED catalog with reviewed orders
True Spark Lighting Supply
Wall PacksOutdoorPT-WPM3
In stock

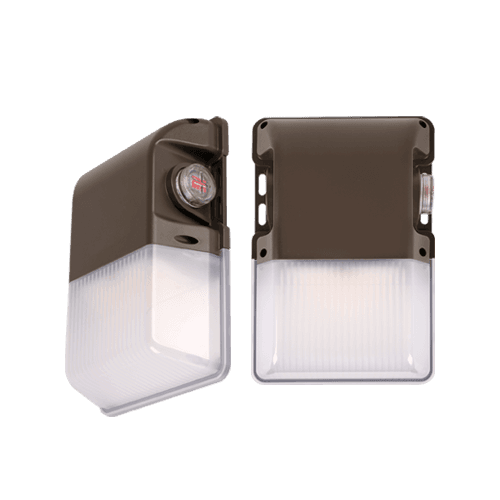

Mini Wall Pack with CCT and Wattage Selector

Output

3,487 lm

Wattage

15/20/25W

Family

PT-WPM3

Product details

Mini Wall Pack with CCT and Wattage Selector

Wall Packs · Outdoor catalog · SKU PT-WPM3-3CP

Overview

Mini Wall Pack with CCT and Wattage Selector outdoor perimeter and building facades.

  • Hard-plastic housing.
  • Luminaire is built with the highest quality driver that is universal voltage (120-277V), uses highly-efficient LED packages to ensure cool temperatures for long lasting life span.
  • PC lens designed to reduce glare and improve over-all light distribution through precision formed LED optics.
  • Options available for occupancy sensors with daylight harvesting function, pre-installed photocell.
  • Wall Mount _ Blank (Wall mount) Fixture Add-on3

Series reference

Family

PT-WPM3

Document

Mini Wall Pack with CCT and Wattage Selector

Portor's third generation PT -WPM3 series combines economical and security solution for

Catalog

Outdoor

Specifications shown are based on the series reference. Confirm exact dimensions and ordering options in the manufacturer PDF before purchasing.

Technical breakdown

Technical specifications

Key technical specifications for this fixture, sourced from the manufacturer document.

PT-WPM3 / 14 fields

Catalog

Outdoor

Family

PT-WPM3

Fixture type

Wall Packs

Wattage

15/20/25W

Output

3,487 lm

Color temperature

3000K / 4000K / 5000K

Voltage

120V-277V

Dimming

0-10V dimming

CRI

80+

Operating temp

-40 deg F ~ 104 deg F

Power factor

>0.9

Warranty

5 year limited (Standard)

Lifespan

L70 > 50,000 hours

Frequency

50/60 Hz
