Commercial LED catalog with reviewed orders
Wall PacksOutdoorPT-WPH-4
In stock

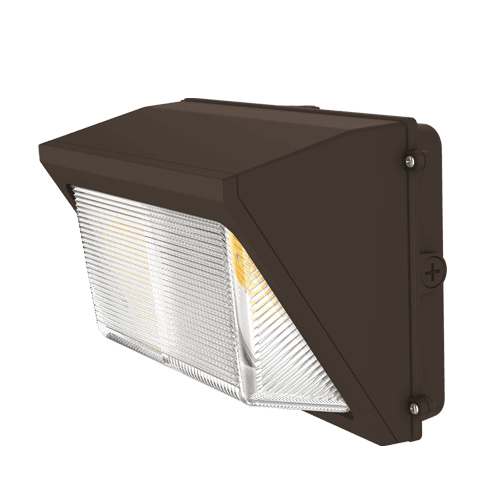

Half Cut-Off Wall Pack with CCT and Wattage Selector

Output

11,667 lm

Wattage

45/60/75W

Family

PT-WPH-4

Product details

Half Cut-Off Wall Pack with CCT and Wattage Selector

Wall Packs · Outdoor catalog · SKU PT-WPH-75-3CP-4

Overview

Half Cut-Off Wallpack with CCT & Wattage Selector the right amount of area with optimal lighting; while maintaining a robust, durable housing.

  • The die-cast aluminum is a durable, powder-coated housing sealed by a silicone ring YJKEJGPCDNGUVJGNWOKPCKTGVQCEJKGXGFWUVCPFYGCVJGTTGUKUVCPEG6JGƒZVWTGJCU been constructed and complies with wet location ratings, IP65.
  • Luminaire is built with the highest quality 0-10V dimmable LED driver that operates with Standard Voltage (120V-277V) and is completed with 4KV surge protection.
  • Borosilicate glass lens designed to reduce glare and improve over-all light distribution through precision formed LED optics.

Series reference

Family

PT-WPH-4

Document

PT -WPH-3CP-4 SERIES

Half Cut-Off Wallpack with CCT & Wattage Selector

Catalog

Outdoor

Specifications shown are based on the series reference. Confirm exact dimensions and ordering options in the manufacturer PDF before purchasing.

Technical breakdown

Technical specifications

Key technical specifications for this fixture, sourced from the manufacturer document.

PT-WPH-4 / 14 fields

Catalog

Outdoor

Family

PT-WPH-4

Fixture type

Wall Packs

Wattage

45/60/75W

Output

11,667 lm

Color temperature

3000K / 4000K / 5000K

Voltage

100V-277V

Dimming

0-10V dimming

CRI

70

Operating temp

-40 deg F ~ 113 deg F

Current

0.9 - 0.33A

Power factor

>0.9

Warranty

5 year limited (Standard)

Lifespan

5 year Limited Warranty, L70 50,000 hours
