Output
up to 1010 lm
Wattage
12W
Family
PT-DL31-EDL
Product details
Disk Lights · Residential catalog · SKU PT-DL31-EDL-6I-12W-5CCT
Overview
4"/6" Edge-Lit 3in1 Surface Mount with CCT Selector MODEL# WATTS LUMENS LM/WATT CCT CRI VOL TAGE PT -DL31-EDL-6I-12W-5CCT 12W up to 1010 87 PT -DL31-EDL-4I-10W-5CCT 10W up to 663 76
Series reference
Family
PT-DL31-EDL
Document
PT -DL31-EDL SERIES

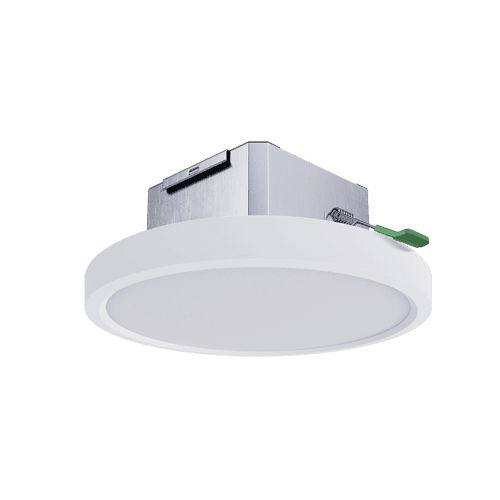

4"/6" Edge-Lit 3in1 Surface Mount with CCT Selector
Catalog
Residential
Technical breakdown
Key technical specifications for this fixture, sourced from the manufacturer document.
Catalog
Residential
Family
PT-DL31-EDL
Fixture type
Disk Lights
Wattage
12W
Output
up to 1010 lm
Color temperature
27K / 30K / 35K / 40K / 50K
Voltage
120V
Dimming
Triac dimmable
CRI
90
Power factor
>0.9
Warranty
5 year limited
