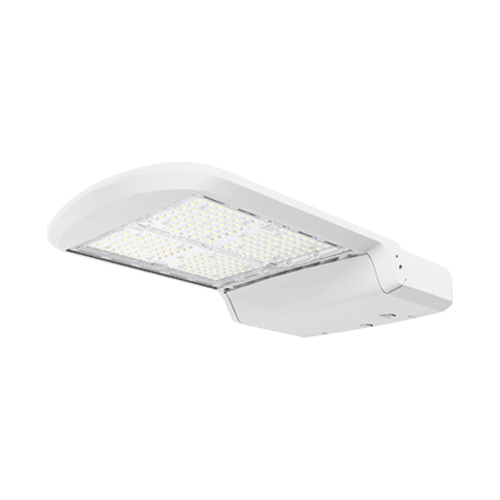

Area/Site Light with CCT and Wattage Selector

Output

up to 21,593 lm

Wattage

100/120/150W

Family

PT-AL2N

Product context

A cleaner way to browse project notes, applications, and document details.

Overview

Area/Site Luminaire with CCT and Wattage Selector provides advanced optical control.

  • Die-cast aluminum body combined with state of the art heat dissipation.
  • Built with the highest quality, long lasting Universal Voltage driver 100V-27V (347V-480V optional), and water resistant LED chips.
  • Comes standard with Type III optics designed to reduce glare and improve light distribution through precision formed lens optics.
  • Multiple mounting options available: Slipfitter, square-pole mount, round-pole mount, u-bracket and trunnion mount.

Series reference

Family

PT-AL2N

Document

Area/Site Luminaire with CCT and Wattage Selector

Portor's second generation AL2N Area Light White Series is highly energy efficient and

Catalog

Outdoor

This page is using the closest matched Portor family spec. Confirm exact options and dimensions in the PDF before ordering.

Technical breakdown

The project-ready details buyers usually need first.

Technical fields below combine storefront data with the cleaned manufacturer spec details that are most useful on a product page.

PT-AL2N / 14 fields

Catalog

Outdoor

Family

PT-AL2N

Fixture type

Area Lights

Wattage

100/120/150W

Output

up to 21,593 lm

Color temperature

3000K / 4000K / 5000K

Voltage

100V-27V (347V-480V optional)

Dimming

1-10V dimming

CRI

70+

Distribution

through precision formed lens optics. Type IV and Type V is available

Operating temp

40 deg F ~ 122 deg F

Power factor

>0.9

Warranty

5 year limited (Standard)

Lifespan

L70 Rated for 50,000 hours
